CutMaster / PreCutter

With CutMaster it is not only possible to mark parts with the highest precision, but also to cut circular blanks, produce chip guiding stages and cut various materials.

The cutting of PCD, PcBN and CVD circular blanks is realised by repeated removal of the material. This precise 3D machining protects the material and enables depths of up to 3 mm as well as a cutting cavity with a defined angle and chip guidance geometry.

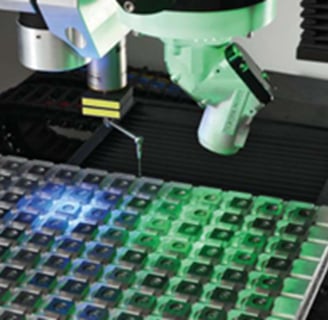

PreCutter is a system for cutting circular blanks and precision pre-machining of diamond tools. PreCutter is perfectly suited for series production and can be optionally expanded with higher power laser sources and additional axes.

RayCutter S / HS

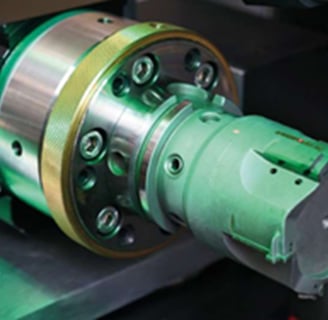

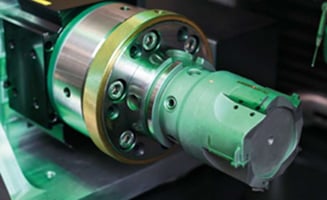

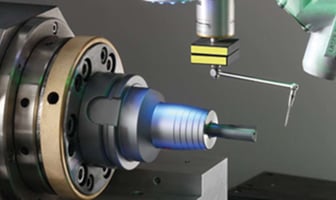

Specially developed laser technology for the machining of diamond tools, highly dynamic part positioning and intuitive user software form the basis of the RayCutter series. Thanks to the zero-point clamping system, the machine can be changed quickly and directly from insert machining to round machining (rotary axis). The foundation of the system is formed by a solid granite base on which all axes of movement are mounted with thermal stability and highest precision. As standard the machine is offered with 4-Axis. 5-Axis machining is possible by extending it with a rotary axis.

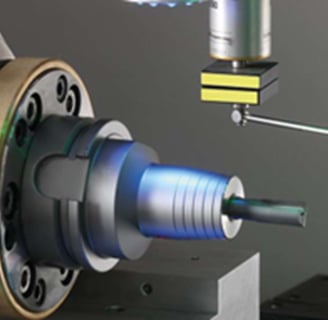

Manual and Automatic Tool Clamping

-Tool length up to 100 mm (diameter up to 240 mm)

-Tool length between 100 mm and 270 mm (diameter up to 150 mm)

-Team weight up to 10kg

-The resolution of the axis is 0.005'm

-Tool adapters HSK 63 and SK 500

The focus is on the use of lasers for marking, deep engraving, welding and precision cutting of hard materials and 3D material removal, micro machining.

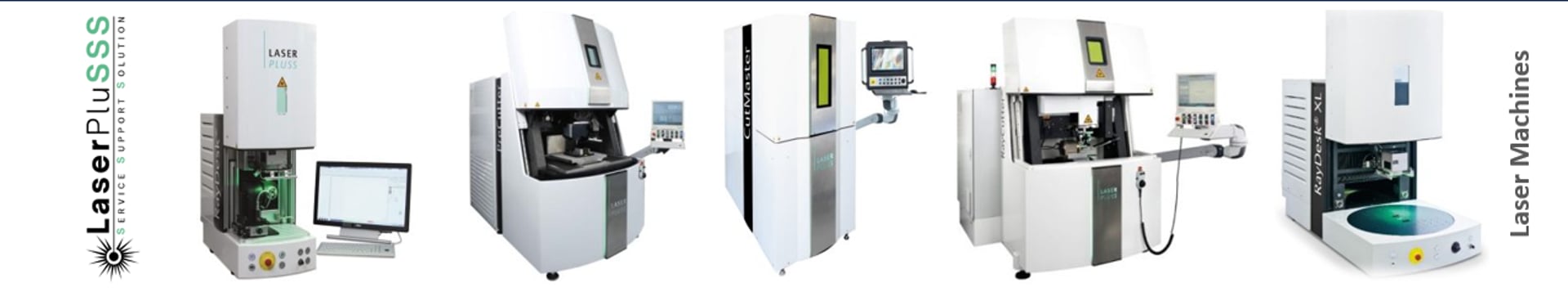

LaserPluSSS manufactures laser processing systems for the industrial production process for customers of the watch and jewellery, semiconductor, toolmaking, plastics, automotive and aerospace and medical technology industries.
